Monitor Aerospike with Datadog

For the complete documentation index see: llms.txt

All documentation pages available in markdown.

This page shows how to configure Datadog to collect Aerospike Database Enterprise Edition metrics from Aerospike Prometheus Exporter. When you finish, Aerospike metrics are available in Datadog through either the Datadog Agent integration or a direct OpenTelemetry (OTel) HTTP connection.

Use Datadog monitoring when your operations, SRE, or DevOps team already uses Datadog for infrastructure and application monitoring. Datadog can then collect Aerospike metrics for cluster availability, namespaces, nodes, sets, secondary indexes, XDR, and latency metrics.

Choose a Datadog path

You can connect Aerospike Database to Datadog through the Datadog Agent integration or directly with OTel HTTP.

Datadog Agent

Datadog Agent runs on the systems you monitor and collects metrics locally. The Aerospike Enterprise Agent integration uses the OpenMetrics endpoint exposed by Aerospike Prometheus Exporter, then sends the collected metrics to Datadog with the rest of your infrastructure telemetry. Use this path when you already run Datadog Agent or want Agent status, host metadata, Agent-level tagging, and standard integration troubleshooting.

Direct OTel HTTP

If you prefer to use direct OTel HTTP, Aerospike Prometheus Exporter sends OTel metrics directly to the Datadog OTLP metrics intake endpoint, so no Datadog Agent or OTel Collector is required between the exporter and Datadog.

Use this path when you cannot run Datadog Agent near the exporter, prefer outbound HTTPS from the exporter, or only need to send Aerospike metrics. This requires the exporter to store a Datadog API key and have outbound access to Datadog. Datadog’s OTLP metrics intake endpoint requires delta metrics, and host metadata sent to this endpoint does not populate the Datadog Infrastructure Host List. Before relying on direct OTel HTTP in production, verify that your expected Aerospike metrics, tags, monitors, and dashboards behave as expected.

Connect and configure Datadog integration

Datadog Agent
Direct OTel HTTP

Datadog Agent prerequisites

You need Aerospike Database Enterprise Edition, Aerospike Prometheus Exporter, a Datadog account, and Datadog Agent installed on the host or container that can reach the exporter endpoint. The Datadog Agent must have a valid Datadog API key and site value in datadog.yaml for your Datadog site. The Datadog account must have permission to install integrations.

If your organization uses the us2.ddog-gov.com Datadog site, confirm that the Aerospike Enterprise integration is available in your organization or request enablement through Datadog support. For more information, see Datadog’s Aerospike Enterprise integration documentation.

If Datadog Agent and Aerospike Prometheus Exporter run on the same host, the default exporter endpoint is http://127.0.0.1:9145/metrics. If they run on different hosts, use a network-reachable hostname or IP address instead.

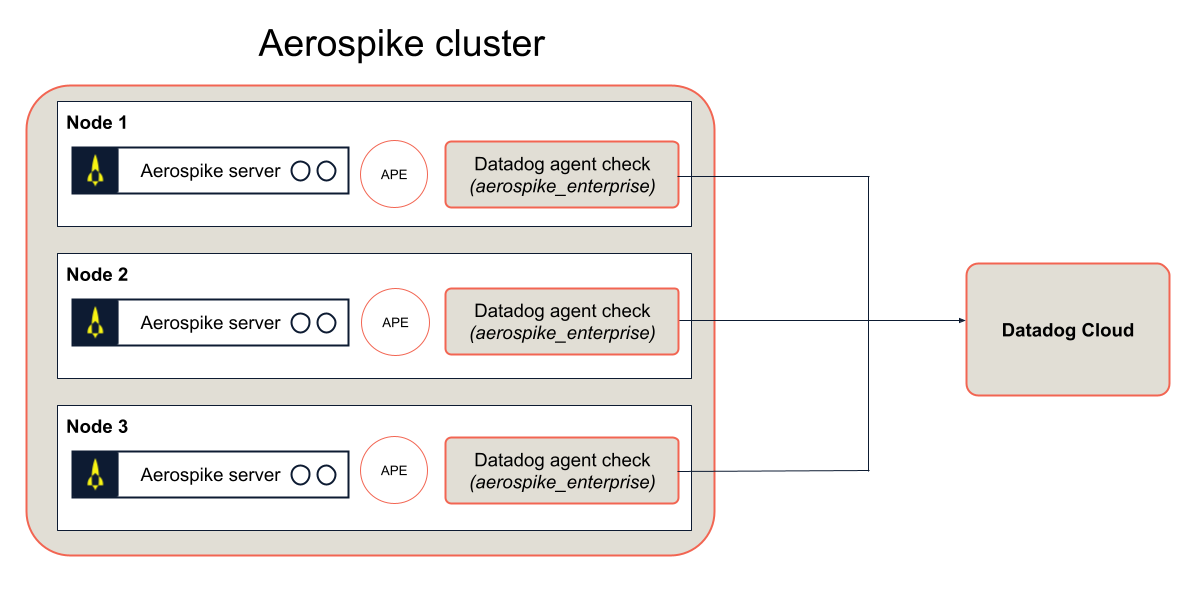

Aerospike cluster metrics collected by Aerospike Prometheus Exporter and scraped by Datadog Agent before being sent to Datadog

Configure Datadog Agent

Install the Aerospike Enterprise Agent integration on each Datadog Agent that will collect Aerospike metrics.
Terminal window
```
datadog-agent integration install -t datadog-aerospike_enterprise==1.0.0
```
Create or edit the Datadog integration configuration file:
```
conf.d/aerospike_enterprise.d/conf.yaml
```
Set openmetrics_endpoint to the Aerospike Prometheus Exporter metrics endpoint. Replace APE_HOST with the hostname or IP address reachable from the Datadog Agent.
```
init_config:

instances:
  - openmetrics_endpoint: http://APE_HOST:9145/metrics
```
If the Datadog Agent and exporter run on the same host, use the loopback endpoint instead:
```
init_config:

instances:
  - openmetrics_endpoint: http://127.0.0.1:9145/metrics
```
If your exporter endpoint uses TLS or authentication, add the matching OpenMetrics options from Datadog’s sample aerospike_enterprise.d/conf.yaml.
Restart the Datadog Agent after you save conf.yaml.
In Datadog, open the Integrations catalog and install Aerospike Enterprise.

This installs the Datadog-side assets for the integration, including the integration tile and bundled dashboards. You can also query Aerospike metrics directly in Datadog by metric name, such as aerospike.server.namespace.client_read_success.count and aerospike.server.latencies.read_ms_bucket.

After the metrics reach Datadog, you can explore them in the Datadog UI in Metrics Explorer, create monitors, and use the Aerospike Enterprise dashboards.

Verify Datadog Agent

From the Datadog Agent host, confirm that the exporter endpoint returns Aerospike metrics.
Command
Terminal window
```
curl http://APE_HOST:9145/metrics
```
Expected output
# HELP aerospike_... # TYPE aerospike_... aerospike_...
If this command cannot connect or does not return Aerospike metrics, Datadog cannot scrape the exporter.
Check the Datadog Agent status and look for aerospike_enterprise in the Checks section.
Command
Terminal window
```
datadog-agent status
```
Expected output excerpt
Checks ====== aerospike_enterprise Instance ID: aerospike_enterprise:... ...
In Datadog, open Metrics Explorer and search for metrics with the aerospike.server. prefix.

Confirm that Datadog shows Aerospike metrics such as aerospike.server.namespace.client_read_success.count or aerospike.server.latencies.read_ms_bucket. Then open the Aerospike Enterprise dashboards and confirm that cluster and namespace widgets are receiving data.

Troubleshoot Datadog Agent

These steps focus on the Datadog configuration that affects Aerospike metric collection. For Datadog Agent installation, account, or dashboard issues that are not specific to Aerospike metrics, see Datadog’s troubleshooting documentation or support.

The Agent cannot reach the exporter endpoint

From the Datadog Agent host, run curl against the same endpoint configured in openmetrics_endpoint in conf.d/aerospike_enterprise.d/conf.yaml.

Command

curl http://APE_HOST:9145/metrics

Expected output

# HELP aerospike_...
# TYPE aerospike_...
aerospike_...

If the exporter endpoint uses TLS or basic authentication, use the matching options for that endpoint:

curl --cacert CA_FILE_PATH https://APE_HOST:9145/metrics
curl -u DATADOG_AGENT_USERNAME:DATADOG_AGENT_PASSWORD http://APE_HOST:9145/metrics
curl --cacert CA_FILE_PATH -u DATADOG_AGENT_USERNAME:DATADOG_AGENT_PASSWORD https://APE_HOST:9145/metrics

If curl times out or returns a connection error, check that Aerospike Prometheus Exporter is running on the exporter host.
Terminal window
```
systemctl status aerospike-prometheus-exporter
```
If the exporter is running, check that the Agent host can reach the exporter host on port 9145. For example, run curl again with the hostname or IP address used in openmetrics_endpoint, not 127.0.0.1.

The Agent status does not show `aerospike_enterprise`

On the Datadog Agent host, run the integration install command again and check for install errors.
Terminal window
```
datadog-agent integration install -t datadog-aerospike_enterprise==1.0.0
```
Open the Agent configuration directory and check that the integration configuration file exists at conf.d/aerospike_enterprise.d/conf.yaml.
In conf.d/aerospike_enterprise.d/conf.yaml, check that instances contains an openmetrics_endpoint value.
```
instances:
  - openmetrics_endpoint: http://APE_HOST:9145/metrics
```
Restart the Datadog Agent, then run datadog-agent status and look for aerospike_enterprise in the Checks section.

The Agent check runs but metrics do not appear in Datadog

From the Datadog Agent host, run curl against the same URL configured for openmetrics_endpoint in conf.d/aerospike_enterprise.d/conf.yaml. The endpoint should return Aerospike metrics.
In the Datadog Agent main configuration file, datadog.yaml, check that api_key is set and that site matches your Datadog organization, such as datadoghq.com, us3.datadoghq.com, or datadoghq.eu.
From the Agent host, check outbound connectivity to your Datadog site. If your Agent uses a site other than datadoghq.com, replace api.datadoghq.com with the API hostname for that site.
Command
Terminal window
```
curl -I https://api.datadoghq.com
```
Example output
HTTP/...
The HTTP status can vary because this command does not include an API request. A response from Datadog confirms network connectivity. A timeout, DNS failure, or connection refusal means the Agent host cannot reach Datadog.
Run datadog-agent status and check the aerospike_enterprise check output for collection errors.

The exporter endpoint uses TLS or authentication

In conf.d/aerospike_enterprise.d/conf.yaml, update openmetrics_endpoint to use https:// if the exporter serves metrics over TLS.
```
instances:
  - openmetrics_endpoint: https://APE_HOST:9145/metrics
```
If the exporter uses a private certificate authority, add the certificate path with tls_ca_cert in conf.d/aerospike_enterprise.d/conf.yaml.
```
instances:
  - openmetrics_endpoint: https://APE_HOST:9145/metrics
    tls_ca_cert: CA_FILE_PATH
```

If the exporter requires basic authentication, add username and password in conf.d/aerospike_enterprise.d/conf.yaml.

instances:
  - openmetrics_endpoint: https://APE_HOST:9145/metrics
    username: DATADOG_AGENT_USERNAME
    password: DATADOG_AGENT_PASSWORD

Restart the Datadog Agent and check datadog-agent status for aerospike_enterprise collection errors.

For additional OpenMetrics options, see Datadog’s sample aerospike_enterprise.d/conf.yaml.

Direct OTel HTTP prerequisites

You need Aerospike Database Enterprise Edition, Aerospike Prometheus Exporter 1.31.0 or later, a Datadog account, and a Datadog API key for the target Datadog site. The exporter must be able to make outbound HTTPS connections to the Datadog OTLP metrics intake endpoint.

The exporter sends metrics to Datadog directly, so Datadog Agent does not need to reach the exporter endpoint.

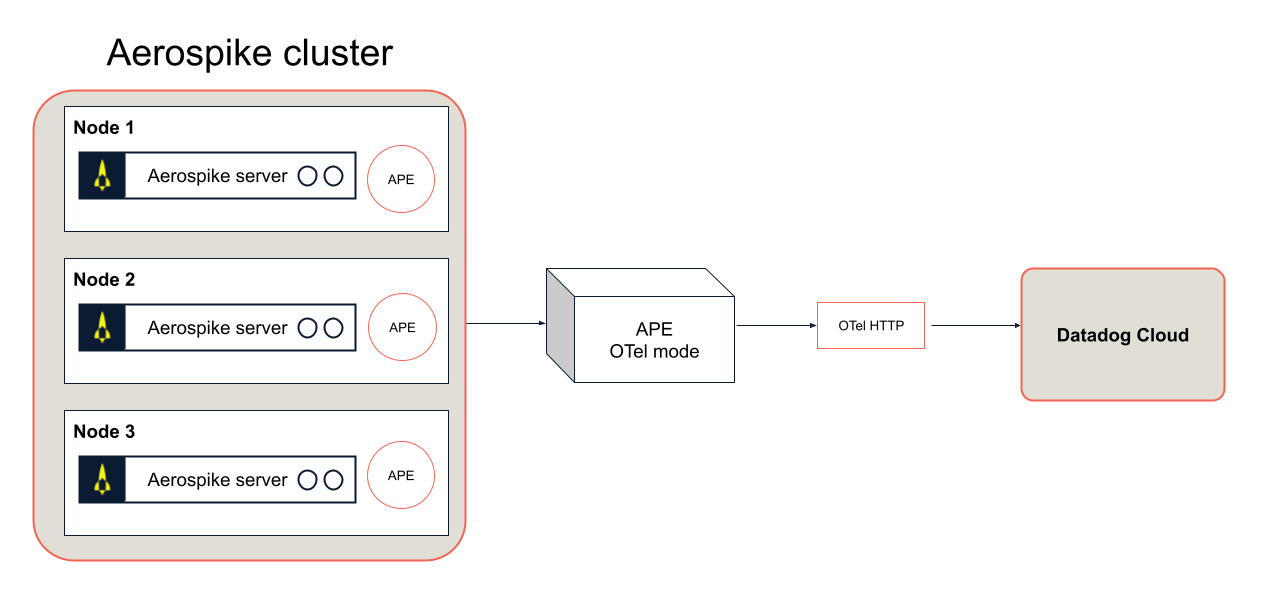

Aerospike cluster metrics collected by Aerospike Prometheus Exporter and sent directly to Datadog through the OTLP metrics intake endpoint

Configure direct OTel HTTP

Create or edit the Aerospike Prometheus Exporter configuration file:
```
/etc/aerospike-prometheus-exporter/ape.toml
```
In the [Agent] and [Agent.OpenTelemetry] sections, enable OTel and configure the Datadog OTLP metrics intake endpoint. Replace DATADOG_API_KEY with your Datadog API key. The API key and http_endpoint must belong to the same Datadog site; for non-US1 sites, replace the endpoint with that site’s OTLP metrics endpoint from Datadog’s OTLP metrics intake documentation.
```
[Agent]
enable_open_telemetry = true

[Agent.OpenTelemetry]
service_name = "aerospike-server-metrics-service"
http_endpoint = "https://otlp.datadoghq.com/v1/metrics"
headers = {"dd-api-key"="DATADOG_API_KEY"}
counter_temporality = "delta"
metric_name_prefix = "aerospike.server"
metric_context_separator = "period"
```
The Datadog OTLP metrics intake endpoint accepts delta metrics. Aerospike Prometheus Exporter uses delta as the default counter temporality, but setting counter_temporality explicitly makes the Datadog requirement visible in the exporter configuration.
Restart Aerospike Prometheus Exporter after you save ape.toml. Use the restart command for your operating system or container platform.

After the exporter sends metrics to Datadog, you can explore them in the Datadog UI in Metrics Explorer and create monitors. Verify the Aerospike Enterprise dashboards before relying on them with direct OTel HTTP because this path does not use the Datadog Agent integration check.

Verify direct OTel HTTP

Check the Aerospike Prometheus Exporter logs after restart.

Confirm that the exporter starts without OTel configuration errors and does not report Datadog export failures. If the exporter logs HTTP status errors from Datadog, verify the OTLP endpoint, API key, and outbound network access.
In Datadog, open Metrics Explorer and search for metrics with the aerospike.server. prefix.

Confirm that Datadog shows Aerospike metrics such as aerospike.server.namespace.client_read_success.count or aerospike.server.latencies.read_ms_bucket.
Open the Datadog dashboards or monitors that you expect to use with Aerospike metrics.

Confirm that the widgets receive data and that the tags you use for filtering and grouping are present. Host metadata from direct OTLP metrics does not populate the Datadog Infrastructure Host List.

Troubleshoot direct OTel HTTP

These steps focus on the Aerospike Prometheus Exporter settings and network checks required to send Aerospike metrics to Datadog. For Datadog account, API key management, or monitor behavior that is not specific to Aerospike metrics, see Datadog’s troubleshooting documentation or support.

Metrics do not appear in Datadog

In Datadog, open Organization Settings > API Keys and check that the key used in ape.toml exists and is active.
In ape.toml, check that http_endpoint uses the Datadog site for your organization, such as https://otlp.datadoghq.com/v1/metrics for the US1 site.
```
http_endpoint = "https://otlp.datadoghq.com/v1/metrics"
```
If your organization uses a different Datadog site, replace http_endpoint in ape.toml with that site’s OTLP metrics intake endpoint. For example, use https://otlp.datadoghq.eu/v1/metrics for the EU1 site.
From the exporter host, check outbound HTTPS access to the OTLP metrics endpoint. If your organization uses a Datadog site other than US1, replace the URL with the value configured in http_endpoint in ape.toml.
Command
Terminal window
```
curl -I https://otlp.datadoghq.com/v1/metrics
```
Expected output
HTTP/2 405
The HTTP status can vary because this command does not send an OTLP metrics payload. A response from Datadog confirms network connectivity. A timeout, DNS failure, or connection refusal means the exporter host cannot reach the OTLP endpoint.
Check the exporter logs for startup errors, OTel configuration errors, and HTTP status responses from Datadog.

Datadog rejects metrics or datapoints are missing

In ape.toml, check that the exporter sends delta metrics.
```
counter_temporality = "delta"
```
Datadog rejects cumulative metrics sent to the OTLP metrics intake endpoint. After you change counter_temporality, restart Aerospike Prometheus Exporter and check the exporter logs for Datadog export errors.
In ape.toml, check that the metric name prefix matches your Datadog queries, monitors, and dashboards.
```
metric_name_prefix = "aerospike.server"
```
In Datadog Metrics Explorer, search for the configured prefix. If you change metric_name_prefix, update any dashboards and monitors that query the previous metric names.
Open a metric in Metrics Explorer and review the available tags. If a monitor or dashboard filters by a tag that is not present on the metric, update the filter or configure the exporter to send the tag in ape.toml.

Datadog returns `403 Forbidden`

In Datadog, open Organization Settings > API Keys and check that the API key used in ape.toml is active.
Compare the Datadog site where you created the API key with the hostname in http_endpoint in ape.toml. For example, an API key created in the US1 site must use https://otlp.datadoghq.com/v1/metrics.
Check the exporter logs after restart. If 403 Forbidden continues, create a new API key for the target Datadog site and replace the dd-api-key header value in ape.toml.

Datadog returns `413 Request Entity Too Large`

Check whether the exporter logs show payloads that exceed the Datadog OTLP metrics intake limit. Datadog returns 413 Request Entity Too Large when an OTLP request payload is larger than 500 KB uncompressed or 5 MB compressed after decompression.
Aerospike Prometheus Exporter does not expose an OTLP batch-size setting in ape.toml. To reduce the payload size, reduce the number of exported metrics with Aerospike Prometheus Exporter allowlist or blocklist settings.
In ape.toml, remove labels that you do not use in Datadog queries, monitors, or dashboards from the [Agent] labels setting.
Restart Aerospike Prometheus Exporter and check the exporter logs for another 413 Request Entity Too Large response.

Datadog shows missing or lower-than-expected datapoints

In Metrics Explorer, open the affected metric and compare the tags on datapoints that arrive at the same time.
If multiple datapoints for the same metric share the same timestamp and tag set, add distinguishing labels in the [Agent] labels setting in ape.toml, such as a cluster, environment, or exporter identifier.
Recheck the metric in Metrics Explorer after the next exporter push interval. Datadog keeps only the last datapoint for duplicate timestamp-plus-dimensions combinations.
